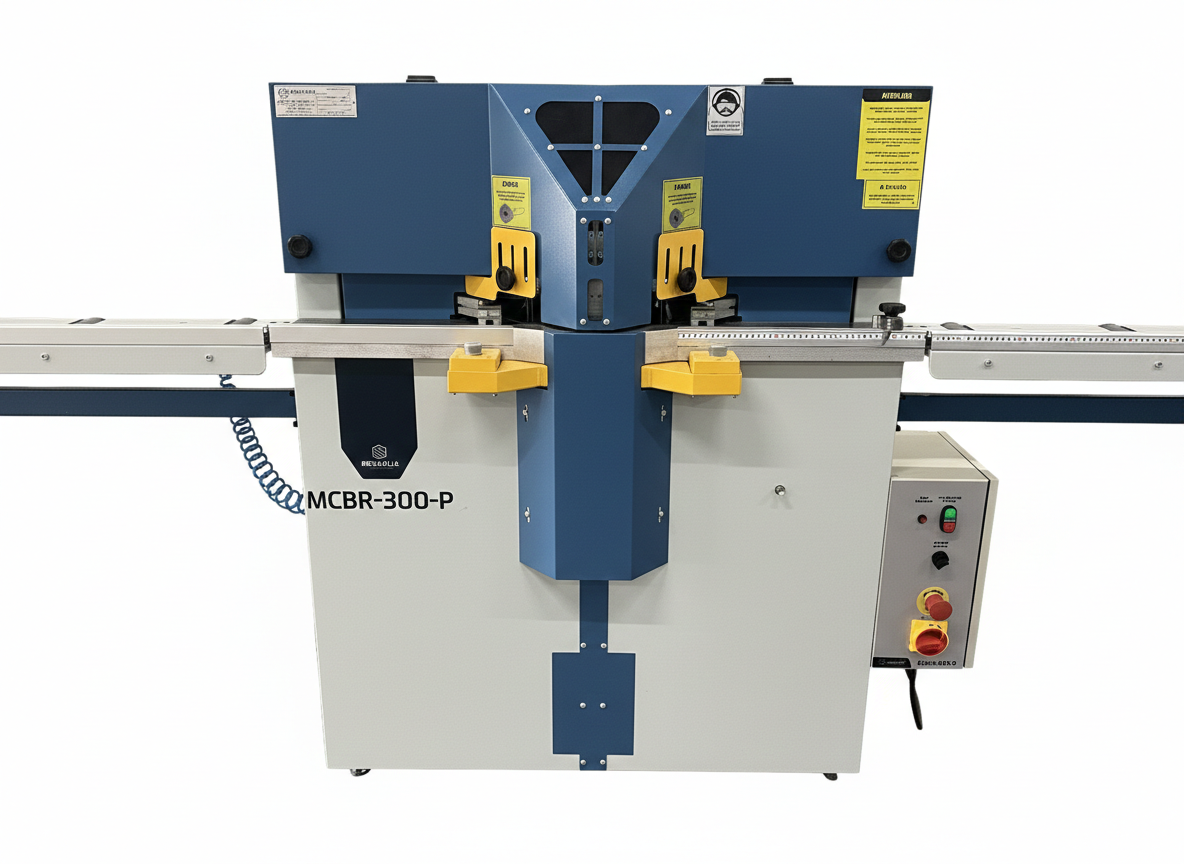

The Bramold® MCBR-300-PEAL cutting machine is designed to maximize productivity and safety when cutting aluminum profiles, PVC, and lightweight materials at a 45º angle. This advanced equipment uses a set of blades that move simultaneously via the electric drive of the two-hand control, ensuring greater productivity and operator safety.
To guarantee maximum safety, the MCBR-300-PEAL is also equipped with safety relays, a pneumatic decompression valve with padlock, a main switch, an emergency stop button, a reset button, and front and top pressure plates. Operation is performed via a two-hand control system, monitored by a simultaneous safety relay, which significantly increases operator safety.
This equipment not only improves cut quality but also redefines safety and efficiency standards in the industry. The MCBR-300-PEAL cutting machine is the ideal choice for those seeking excellence in technology and performance.
Technical Data and Information:
– Cutting capacity at 45°: 8cm high x 7.5cm wide;
– Equipped with 1.5hp motors;
– Electric two-hand control;
– High-quality pneumatic system;
– Structure painted with epoxy paint, providing a better finish and longer equipment lifespan;
– Automatic lubrication of the saw blades;
– Internal lighting;
– Additional roller extensions with lengths of 2500mm (optional);
– For higher quality profile cutting, use original Bramold® circular saw blades;
– Available in 220V single-phase, 220V three-phase, and 380V three-phase power supplies.
Special electrical system with equipment and operator protection items.
Equipment operation through simultaneous activation of electrical buttons.
Automatic lubrication system for the saw blade.
Pneumatic pressure pressure system for cutting upper and front profiles.
Adjustment of blade descent to the speed/finish desired by the operator.
For a better finish of the profile to be cut, use the 300mm aluminum model.
Capacidade de corte ângulo 45°
