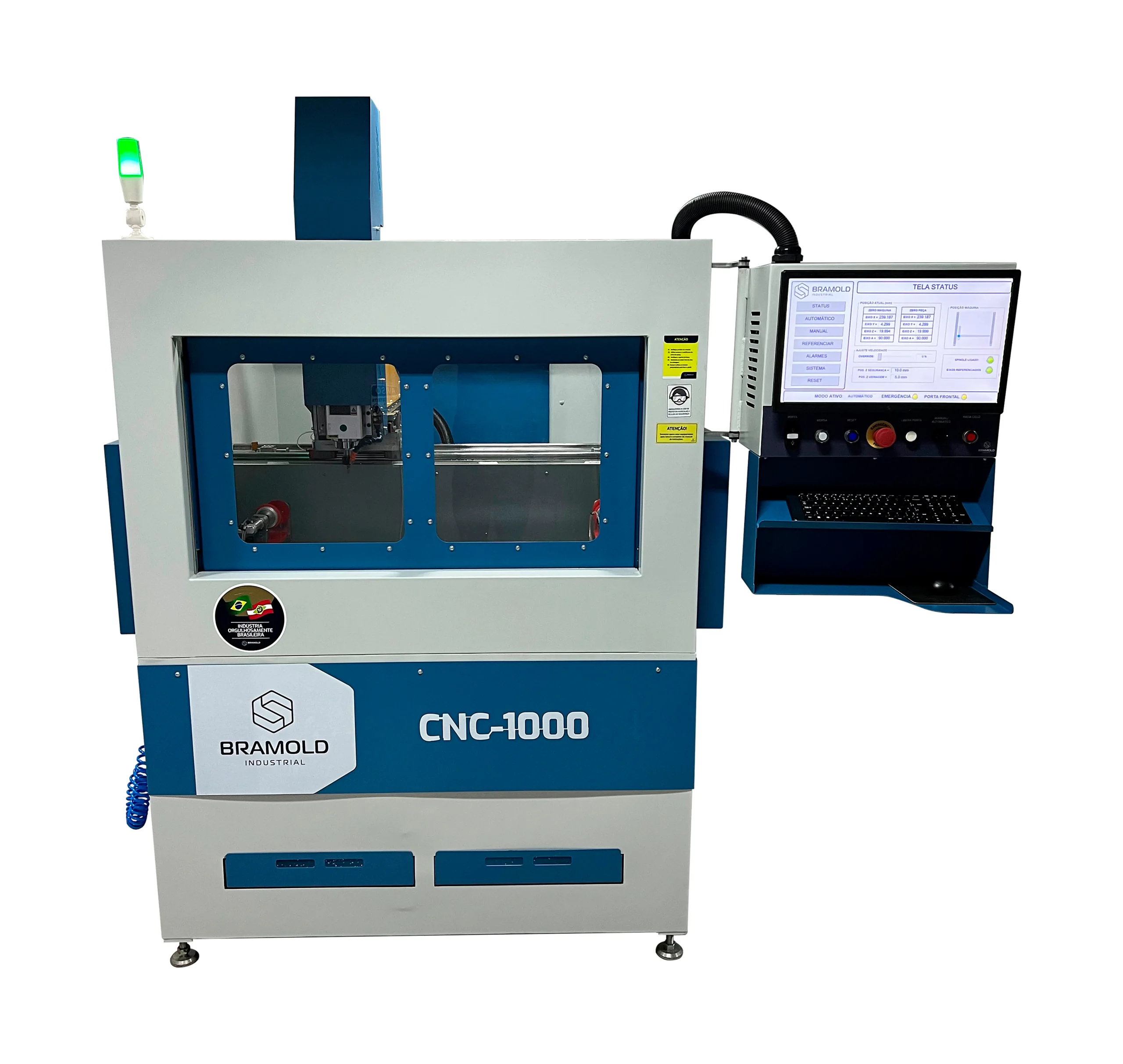

The Bramold CNC-1000 Machining Center is a remarkable example of innovation and precision. Developed for the automatic machining of aluminum and PVC profiles, this equipment combines cutting-edge German technology in drives and motors with an easy-to-use interface, designed for customers who demand precise, fast and safe machining.
Its robust and advanced design meets the daily needs of the industry, providing high productivity and efficiency. The intuitive and safe interface allows for easy and fast programming, making the machining process simpler and more effective.
This equipment is ideal for those seeking excellence and innovation in profile machining, ensuring superior performance and exceptional results.
Technical data and information:
– excellent quality pneumatic system;
– machining capacity in “X”: 1000mm (with 4th axis: 920mm);
– machining capacity in “Y”: 150mm;
– machining capacity in “Z”: 150mm;
– rapid displacement of the “X” axis: 22000 mm/min;
– rapid displacement of the “Y” axis: 10000 mm/min;
– rapid displacement of the “Z” axis: 8000 mm/min;
– pneumatic clamp: 2 pieces;
– program for easy operation and handling of the machine;
– 20-inch screen;
– German drives and motors;
– machine enclosed for operator safety;
– high-speed spindle with 18,000 rpm, 4.7 hp power;
– ER25 collets, capable of working with tools from Ø 1 to 16mm;
– 4th axis that allows the rotation of the Profile (part) by + 90º and -90º (optional);
– has 220 three-phase and 380 three-phase power supply voltage.
High performance spindle.
Equipment has automatic lubrication on the busbars, thus ensuring a longer useful life.
Excellent quality pneumatic kit ensuring greater durability for the equipment.
ER25 collets, capable of working with tools from Ø 1 to 16mm.
Light warning to indicate working status.
Interchangeable pneumatic clamps, facilitating the work and adjustment of the product to be machined.
Cleaning nozzle for equipment maintenance.
Equipped with 2 chip collection trays.
4th axis that allows the rotation of the Profile (part) by + 90º and -90º. (optional)
